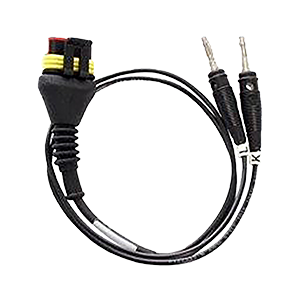

Universal terminal cable with two outlets : K and L.
This cable allows the diagnosis of DAEDONG, DAF MARINE, FNM MARINE (starting from 2005), JOHNSON, KAWASAKI MARINE, LOMBARDINI MARINE, SISU and SUZUKI MARINE (engines with round 8-way socket, incompatible with the AM22 cable) models.
Note : This terminal cable is used to connect specific PINS on specific diagnostic sockets. To establish communication, one or both of the cable's outlets should be connected to a specific tip, and then connected to a specific PIN on the engine socket. The outlet, tip and pin to be used can be visualized on the diagnostic software.
ATTENTION : The terminal cable must be connected to either the AM01 or the AM01 CAN main cable, depending on the engine to diagnose. Which main cable to use will be indicated on the diagnostic preparation page that is displayed before communication is established. Be careful not to confuse the two main cables (AP01 and AP01 CAN), as they are very similar in appearance.
This cable is a TEXA product.
