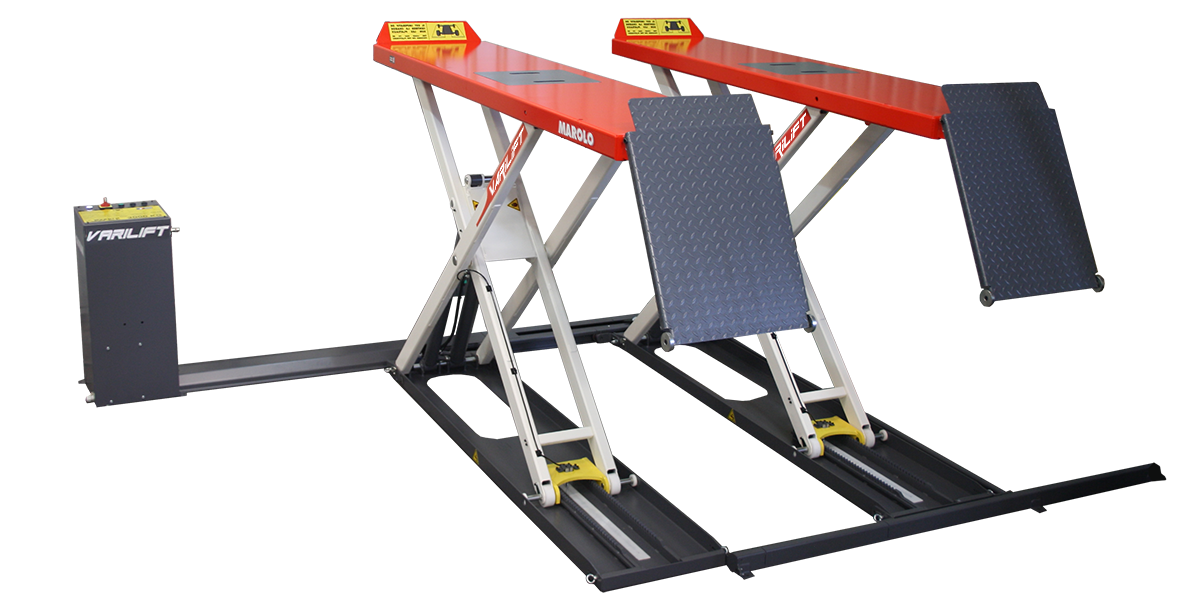

Lift VARILIFT 3000 H Hydraulic with variable width - 3 Tons - Left

In stock

Sku : 804310

Log in to view prices

Details

High capacity lift using the patented VARILIFT technology : Two synchronised lifts mounted on rails

  • Lifts up to 3 tons
  • Platform adjustable in width by sliding on rails
  • Designed for 3- and 4-wheeled vehicles, weighing up to 3 tons
  • Easy and safe access under the vehicle
  • Lifts up to 1.7m high
  • 4 synchronized hydraulic jacks
  • Pneumatic outlet (to power pneumatic tooling)
  • Operated from a side console with dead man’s control for additional safety
  • Railing can be cut down to 2 meters to save space : ref. MODIF01

Console on the left-hand side
Max. height : 1.70 m
Max. capacity : 3000 kg
CE compliant

patentedMade in france

Table VARILIFT 3000 H Hydraulique à largeur variable - 3 tonnes - Gauche

More Views

Specifications

  • Hauteur mini : seulement 160 mm
  • Hauteur maxi : 1700 mm
  • 2 plateaux
  • Largeur du plateau : 600 mm
  • Longueur du plateau : 2600 mm
  • Largeur maxi extérieure : 2700 mm (sans le kit rallonge)
  • Voie maxi axée sur le plateau : 2100 mm
  • Voie mini axée sur le plateau : 700 mm
  • Passage maxi entre les deux plateaux : 1480 mm
  • Energie hydraulique, 4 vérins
  • Alimentée par une centrale électro-hydraulique 380 V Triphasé
  • Commande "Homme-mort", basse tension
  • Capacité de levage : 3 tonnes
  • Poids de la table : 890 Kg
  • Pré-équipement pneumatique
  • Position du pupitre (droite, ref : 804300), (gauche ref :804310)
